Creating an E-ink weather notification board

I love e-ink displays. Their ability to make something digital seem just a little bit analogue intrigues me and I just had to make anything that makes use of one. Like many, many other people on the internet that turned out to be a weather station.

The initial aim, seeing as I was already going to use a power efficient display, was to use low power components to eke out as much life as possible out of a battery pack. In the end things turned out a little bit differently and a Raspberry Pi Zero W instead of a more frugal controller was used.

Control

To control the display and retrieve the data, a WEMOS NodeMCU v3.0 was intially selected. This can be programmed from the Arduino IDE following the setup described here. Due to many difficulties with the chosen e-ink display and this controller, as well as limitations in getting the weather forecast data parsed, a Raspberry Pi Zero W replaced in NodeMCU. The main reason probably was laziness to get things working smoothly.

Taking the easier solution, a Raspberry Pi Zero W is ran in headless mode with a Python script controlling the display and retrieving the data to display. As part of setting up the Pi Zero, it is connected via WiFi to the internet to retrieve weather data. The link at the beginning of this paragraph also covers how this is done.

E-Ink

A Waveshare 7.5″ E-Ink display is used to display the data. It has a resolution of 640 x 384 and capable of showing three colours; black, red and white. This display has been discontinued and has been replaced with a higher resolution version at around the same price of $100.

While using the NodeMCU controller the GxEPD library from J-M Zingg was used to write to the display. There is already a video on how to start using this on Youtube. The library is very easy to use and support a variety of E-ink displays.

Moving to the Pi Zero, the libraries recommended by the manufacturer was used.

The Python Script

Getting weather data

Weather data is provided by OpenWeatherMap. There are tons of information on how to setup and use OpenWeatherMap on both the Raspberry Pi as well as the NodeMCU.

In summary, you need to create a free account at OpenWeatherMap.org. This will provide you with an API key with which you can request the weather data. The “request” python library is the used to retrieve the JSON data stream that can then be organised in the data you wish to display.

import requests
import json

#--------------------------------------------------------------
#OpenWeaterMap setup
#--------------------------------------------------------------
#OpenWeaterMap API key
api_key = "PutYourKeyHere"
#Base URL
base_url = "http://api.openweathermap.org/data/2.5/"
#City
city_name = "London,GB"
#Complete URL
currentWeather_url = base_url + "weather?appid=" + api_key + "&q=" + city_name
forecastWeather_url = base_url + "forecast?appid=" + api_key + "&q=" + city_name

currentWeatherResponse = requests.get(currentWeather_url)
forecastWeatherResponse = requests.get(forecastWeather_url)
#Convert json format data into python format data
currentData = currentWeatherResponse.json()
forecastData = forecastWeatherResponse.json()

Controlling the display

The display is controlled using the recommended library from the manufacturer. The display is initialised, cleared and then written to in the following piece of example code. The “imagedraw” python library is used to draw the image that is written to the display.

from waveshare_epd import epd7in5bc #bc = 3 colours
from PIL import Image,ImageDraw,ImageFont

fontdir = os.path.join(os.path.dirname(os.path.realpath(__file__)), 'fonts')
tohoma20 = ImageFont.truetype(os.path.join(fontdir, 'tahoma.ttf'), 20)

epd = epd7in5bc.EPD()
#Initialise and clear
epd.init()
epd.Clear()

imageBlack = Image.new('1', (epd7in5bc.EPD_WIDTH, epd7in5bc.EPD_HEIGHT), 255)  	# 255: clear frame
imageRed = Image.new('1', (epd7in5bc.EPD_WIDTH, epd7in5bc.EPD_HEIGHT), 255)  	# 255: clear frame
draw = ImageDraw.Draw(imageBlack)
draw.text((20,245),'Hello World - Black', font = tohoma20, fill = 0)
draw = ImageDraw.Draw(imageRed)
draw.text((20,245),'Hello World - Red', font = tohoma20, fill = 0)

#Display image
epd.display(epd.getbuffer(imageBlack),epd.getbuffer(imageRed)

Complete script

Here is the complete script to use as you please. Additional to the pieces of code described above it

  • Takes the weather icon code from the data and selects the appropriate letter from the weather icon font
  • Draws the current weather as well as the forecast for the next 15 hours
#--------------------------------------------------------------
#Import
#--------------------------------------------------------------
import sys
import os
import time
from datetime import datetime
import logging
import requests
import json

fontdir = os.path.join(os.path.dirname(os.path.realpath(__file__)), 'fonts')
libdir = os.path.join(os.path.dirname(os.path.realpath(__file__)), 'lib')
picdir = os.path.join(os.path.dirname(os.path.realpath(__file__)), 'pic')
if os.path.exists(libdir):
sys.path.append(libdir)

from waveshare_epd import epd7in5bc #bc = 3 colours
from PIL import Image,ImageDraw,ImageFont

#--------------------------------------------------------------
#OpenWeaterMap icon map for Meteocons.ttf
#--------------------------------------------------------------
def getWeatherIcon(iconCode):
switcher = {
'01d': 'B', #01 clear sky
'01n': 'C', #01 clear sky
'02d': 'H', #02 few clouds
'02n': 'I', #02 few clouds
'03d': 'N', #03 scattered clouds
'03n': 'N', #03 scattered clouds
'04d': 'Y', #04 broken clouds
'04n': 'Y', #04 broken clouds
'09d': 'Q', #09 shower rain
'09n': 'Q', #09 shower rain
'10d': 'R', #10 rain
'10n': 'R', #10 rain
'11d': 'O', #11 thunderstorm
'11n': 'O', #11 thunderstorm
'13d': 'W', #13 snow
'13n': 'W', #13 snow
'50d': 'E', #50 mist
'50n': 'E', #50 mist
}

return switcher.get(iconCode,'B')

#--------------------------------------------------------------
#OpenWeaterMap setup
#--------------------------------------------------------------
#OpenWeaterMap API key
api_key = "PutYourKeyHere"
#Base URL
base_url = "http://api.openweathermap.org/data/2.5/"
#City
city_name = "London,GB"
#Complete URL
currentWeather_url = base_url + "weather?appid=" + api_key + "&q=" + city_name
forecastWeather_url = base_url + "forecast?appid=" + api_key + "&q=" + city_name

#--------------------------------------------------------------
#Setup and main loop
#--------------------------------------------------------------
def main():
try:
logging.info("Notification start")

#Initialise display
#==========================
epd = epd7in5bc.EPD()
logging.info("Initialise and clear")
epd.init()
epd.Clear()

#Setup fonts
#==========================
tahomaBig = ImageFont.truetype(os.path.join(fontdir, 'tahoma.ttf'), 155)
tohoma20 = ImageFont.truetype(os.path.join(fontdir, 'tahoma.ttf'), 20)
tohoma24 = ImageFont.truetype(os.path.join(fontdir, 'tahoma.ttf'), 24)
tohoma24bd = ImageFont.truetype(os.path.join(fontdir, 'tahomabd.ttf'), 24)
tohoma40 = ImageFont.truetype(os.path.join(fontdir, 'tahoma.ttf'), 40)
weatherIconsBig = ImageFont.truetype(os.path.join(fontdir, 'Meteocons.ttf'), 230)
weatherIconsSmall = ImageFont.truetype(os.path.join(fontdir, 'Meteocons.ttf'), 75)

#Get start time#Get time of update
#==========================
nowTime = datetime.now()
startTime = nowTime.strftime("%H:%M")
startDate = nowTime.strftime("%d/%m/%Y")

#Get weather data
#==========================
currentWeatherResponse = requests.get(currentWeather_url)
forecastWeatherResponse = requests.get(forecastWeather_url)
#Convert json format data into python format data
currentData = currentWeatherResponse.json()
forecastData = forecastWeatherResponse.json()

#Check if city exist and print data
if currentData["cod"] != "404":
#Store value of main
currentWeatherData = currentData["main"]
#Current temperature
current_temperature = currentWeatherData["temp"]
current_tempMin = currentWeatherData["temp_min"]
current_tempMax = currentWeatherData["temp_max"]
#Current temperature feels like
current_temp_feel = currentWeatherData["feels_like"]
#Current pressure
current_pressure = currentWeatherData["pressure"]
#Current humidity
current_humidity = currentWeatherData["humidity"]
#Weather
weatherDescription = currentData["weather"]
#Description
weatherText = weatherDescription[0]["description"]
weatherIcon = weatherDescription[0]["icon"]
# print following values
else:
print("City not found")

#Forecast -- Check if city exist and print data
foreCastList = []
if forecastData["cod"] != "404":
#Store value of main
forecastWeatherDataMain = forecastData["list"]
#Extract forecast data
for i in forecastWeatherDataMain:
#loopdata = i["sys"]
foreCastItemList = [i["dt_txt"]] #Timestamp
foreCastItemList.append(i["main"]["temp"]) #Weather at timestamp
foreCastItemList.append(i["weather"][0]["icon"]) #Weather icon at timestamp
foreCastList.append(foreCastItemList)
else:
print("Forecast city not found")

#Get time of update
#==========================
nowTime = datetime.now()
currentTime = nowTime.strftime("%H:%M")
currentDate = nowTime.strftime("%d/%m/%Y")
print("Current time = ", currentTime)
print("Current date = ", currentDate)

#Write to E-Ink
#==========================
imageBlack = Image.new('1', (epd7in5bc.EPD_WIDTH, epd7in5bc.EPD_HEIGHT), 255) # 255: clear frame
imageRed = Image.new('1', (epd7in5bc.EPD_WIDTH, epd7in5bc.EPD_HEIGHT), 255) # 255: clear frame
draw = ImageDraw.Draw(imageBlack)
#Last update stamp
draw.text((330,350),'Last update: ' + currentDate + ' - ' + currentTime, font = tohoma20, fill = 0)
#Black frame
#Forecast +3h
draw.text((20,245),str(round(foreCastList[0][1]-273.15,1)) + '°C', font = tohoma20, fill = 0)
draw.text((14,270),getWeatherIcon(foreCastList[0][2]), font = weatherIconsSmall, fill = 0)
#Forecast +6h
draw.text((155,245),str(round(foreCastList[1][1]-273.15,1)) + '°C', font = tohoma20, fill = 0)
draw.text((149,270),getWeatherIcon(foreCastList[1][2]), font = weatherIconsSmall, fill = 0)
#Forecast +9h
draw.text((290,245),str(round(foreCastList[2][1]-273.15,1)) + '°C', font = tohoma20, fill = 0)
draw.text((284,270),getWeatherIcon(foreCastList[2][2]), font = weatherIconsSmall, fill = 0)
#Forecast +12h
draw.text((425,245),str(round(foreCastList[3][1]-273.15,1)) + '°C', font = tohoma20, fill = 0)
draw.text((419,270),getWeatherIcon(foreCastList[3][2]), font = weatherIconsSmall, fill = 0)
#Forecast +15h
draw.text((560,245),str(round(foreCastList[4][1]-273.15,1)) + '°C', font = tohoma20, fill = 0)
draw.text((554,270),getWeatherIcon(foreCastList[4][2]), font = weatherIconsSmall, fill = 0)
#CurrentWeather
draw.text((7,7),getWeatherIcon(weatherIcon), font = weatherIconsBig, fill = 0)
draw.text((295,170),'Feels like ' + str(round(current_temp_feel-273.15)) + '°C' + ' Humidity ' + str(current_humidity) + '%', font = tohoma20, fill = 0)
currentTempString = str(round(current_temperature-273.15,1))
currentTempCharLen = len(currentTempString)-1
dotlength = 55
bigfontwidth = 80
draw.text((280+(currentTempCharLen*bigfontwidth)+dotlength,30),'°C', font = tohoma40, fill = 0)

#Red frame
#CurrentWeather
draw = ImageDraw.Draw(imageRed)
draw.text((280,1),currentTempString, font = tahomaBig, fill = 0)
#Forecast +3h
draw.text((20,220),foreCastList[0][0][11:16], font = tohoma24bd, fill = 0)
#Forecast +6h
draw.text((155,220),foreCastList[1][0][11:16], font = tohoma24bd, fill = 0)
#Forecast +9h
draw.text((290,220),foreCastList[2][0][11:16], font = tohoma24bd, fill = 0)
#Forecast +12h
draw.text((425,220),foreCastList[3][0][11:16], font = tohoma24bd, fill = 0)
#Forecast +15h
draw.text((550,220),foreCastList[4][0][11:16], font = tohoma24bd, fill = 0)

#Display image
epd.display(epd.getbuffer(imageBlack),epd.getbuffer(imageRed))


except IOError as e:
logging.info(e)

except KeyBoardInterrupt:
logging.info("ctrl + c:")
exit()

if __name__ == "__main__":
main()

Setting up the OS

A few tweaks are required to the Pi Zero’s OS to finish things off. First /etc/rc.local is updated to update the OS time at start-up. This is done by opening rc.local in nano (sudo nano /etc/rc.local) and adding “timedatectl” to the file before “exit 0”.

timedatectl
#python3 /home/pi/scriptToRun.py &

exit 0

The script in the previous section will only run once. To get the weather  updated periodically you can either

  • update the python code to have an infinite loop that sleeps at the end of execution. For this option just uncomment the line after “timedatectl” in the example above. Note the “&” at the end will kick off the task in a branch otherwise the rc.local script will never exit.
  • or make use of the Raspberry Pi’s operating system to schedule the python script

Both methods were tested, but it felt “better” to use the operating system to schedule the running of the script. This is done using Crontab. To update crontab type the following in a Putty terminal to the Raspberry Pi

sudo crontab -e

At the bottom add the task you want scheduled with the timing information. The timing is a bit confusing and I have used this webpage to help. To run the script every 10 minutes add this to the bottom of crontab

*/10 * * * * python3 /home/pi/scriptToRun.py

Enclosure and power source

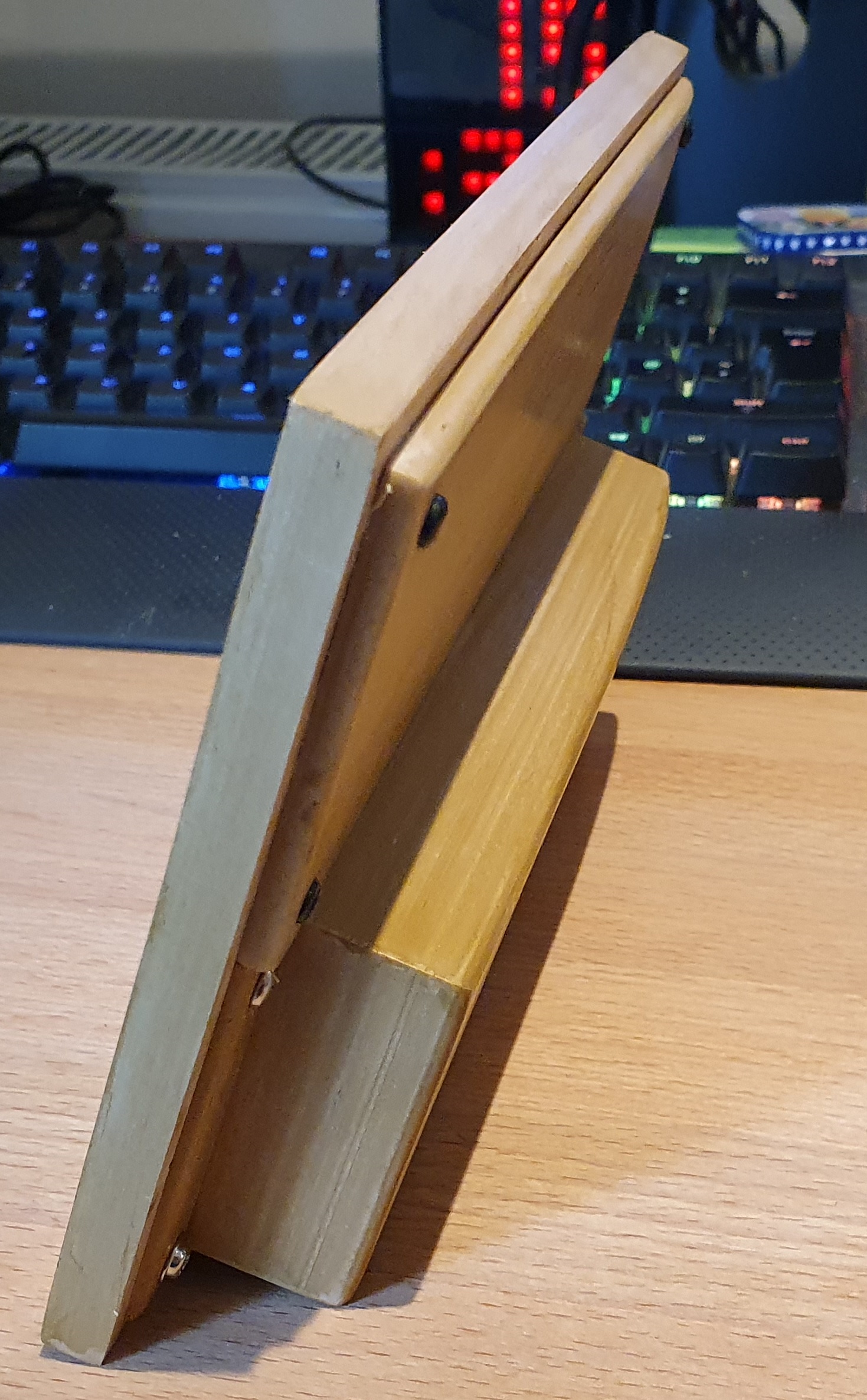

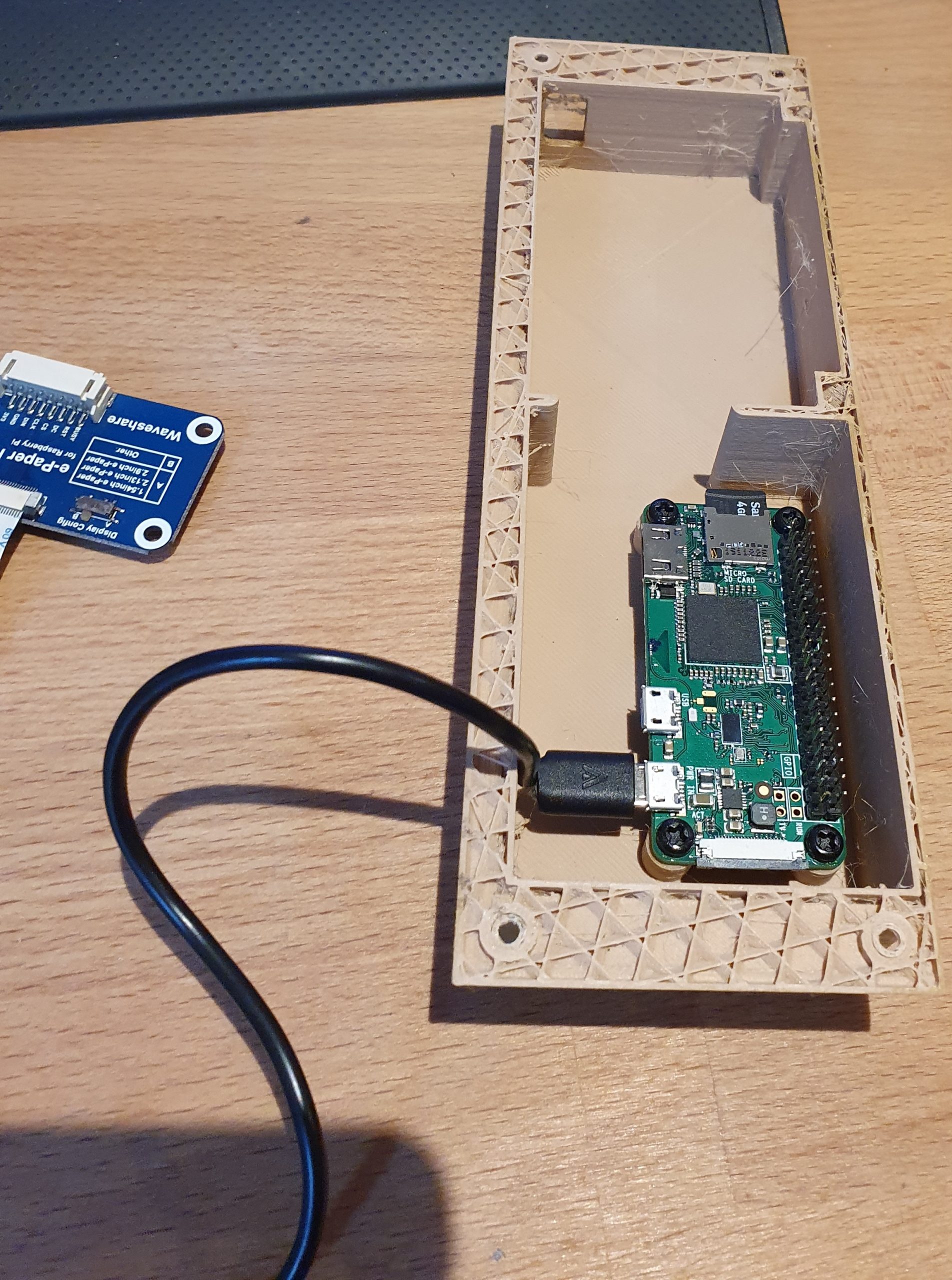

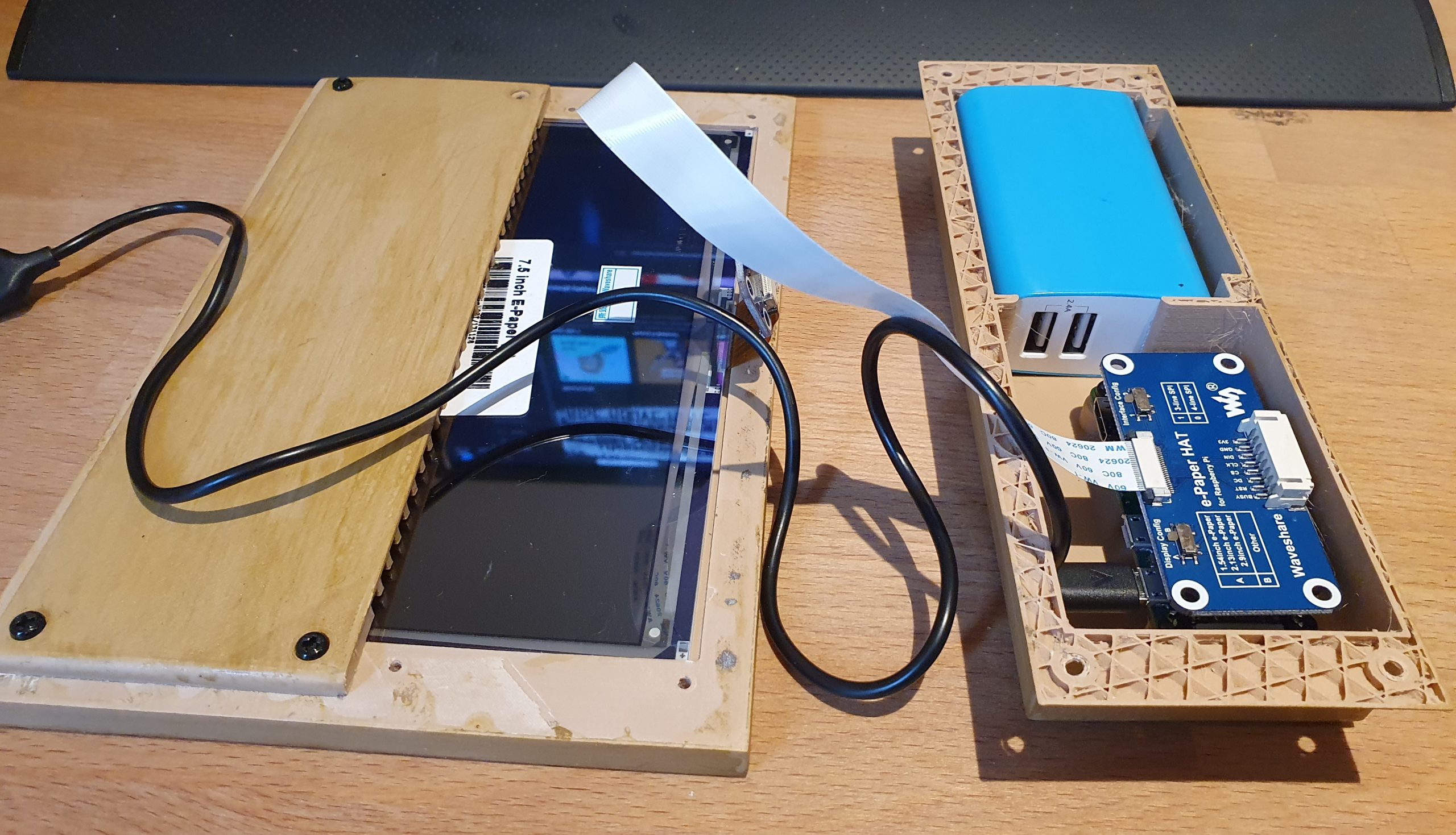

A power bank is used as power source with the enclosure 3D-printed to house this as well as the Raspberry Pi Zero and display with controller board.

Parts list

  • Raspberry Pi Zero W – Amazon or cheaper at PiHut
  • Waveshare 3 colour e-ink display – eBay
  • Wood infused PLA 3D printing filament – Amazon

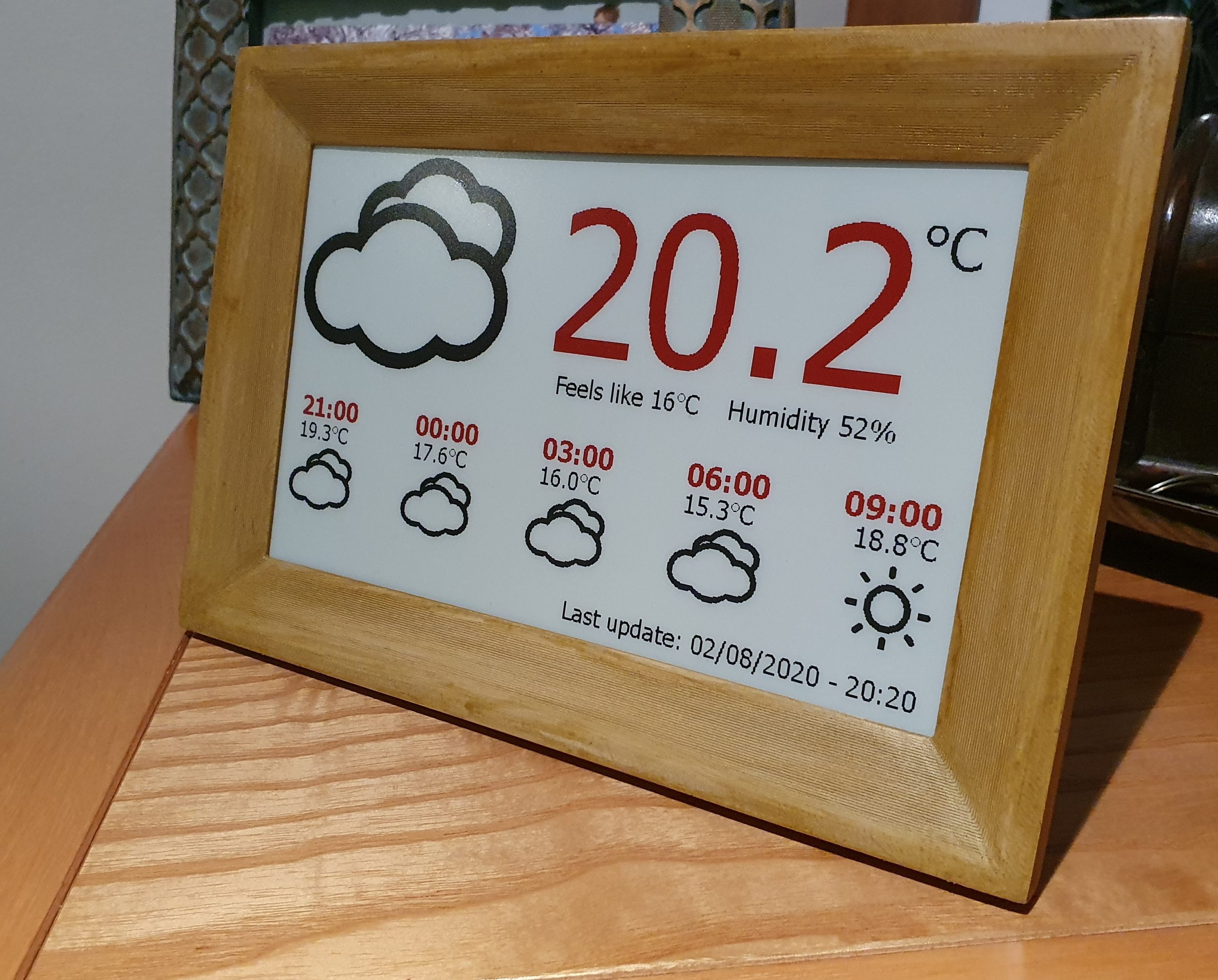

Gallery
